What qualifies a digital camera classic?  Certainly the age, popularity and the reputation of a camera are all important factors. These all contribute to the level a camera embedded into our collective photography consciousness.  I cannot tell if the original Fuji X100 (revealed in 2010) can already be considered as a classic camera by the general public, but it is definitely on my list.

_DSF1536_b

This little gem has grabbed my attention right at the time it was announced. Such a striking retro design spiced up with a big sensor and a rangefinder like a viewfinder which actually made sense in an autofocus camera. I fell in love with it immediately and spent quite some time on the elegant Fujifilm website dedicated to this camera. The hybrid viewfinder was something quite special. To be honest, I was a bit concerned about the longevity of the little screen which jumps in an out of sight. But it was very innovative at the time and unique to this day. The lens looked interesting too. A compact 35mm equivalent lens designed for the sensor specifically. The whole package was really appealing to me. But, I am a late adapter. I like to wait until a product matures. Indeed the X100 had several issues which were mainly addressed by firmware updates. Needless to say that newer incarnation of the X100 has reportedly improved on the early weak spots of the camera such as focus speed or easy to bump dials. At the end of the day, I have picked up a Leica M2 instead. After all, many of the so appealing design clues on the X100 likely originate from the Leica M.


As the years passed by, I have almost lost sight of the small camera. Of course, I was reading the news about the releases of the revised versions of it. But was no longer particularly intrigued by it.

Until recently when a colleague of mine spotted my Leica on my desk. He casually mentioned that his camera looks almost the same the one front of me. Classic cameras are great conversation starters. So, we have started to talk and soon I learned many cool things about Dominic. I knew that he grew up in the US but I had no idea that it was the neighborhood where Ansel Adams lived at the time. I knew that he is a photographer, but I did not know that he is shooting with an X100. The best part is that he is not only owning the first generation X100, but he was also kind enough to borrow me so I could take pictures with and of it for the blog.

_DSF3590_DSF3594_DSF3606

My impressions

The camera is gorgeous. It felt in the hand just like I have imagined. It is small, compact and well built. Obviously, it is not the same feel as my M2, but I have never expected it to be. Brass has been replaced with magnesium alloy which makes the little Fuji lighter. But the less weight suits the X100. It is a camera which could come with me anywhere without noticing it much. I think this is probably the point of it. A camera which looks great even special takes brilliant images and small and lite enough to carry everywhere.

Menus and button layout

I have used other digital Fuji cameras before ranging from a 10-year-old point and shoot to the XT-2. It is interesting to see how Fuji carries over design characteristics over camera generations. For example, the delete photo animation is very similar to all the cameras I have used although more and more elegant and refined with each iteration. The X100 felt like a Fuji camera immediately even so it took some time to learn it’s special quirks. The menu system is slow and (unsurprisingly) looks dated compared to newer models. But once I set up everything to my taste, I could forget about the menus. I have programmed the Fn button for ISO and the Raw button to control the built-in ND filter. The button placement needed some practice time too. The AF point selection button felt out of place at first and I have still not completely figured out all the functions of the rotating ring around the D-pad. My biggest and possibly my only real complaint is that the exposure compensation dial is way too easy to move accidentally. I had many occasions of wrong settings after getting the camera out of my bag.

The viewfinder

My favorite part, on the other hand, is the hybrid viewfinder. I love to use it in optical mode. The projected information overlay is ingenious. We may take customizable information overlay granted today but we usually find it in full electronic finders. The instant preview in the viewfinder is also something I enjoy. The little display screen slips into place right after the photo has been taken to show the captured image without the need to ever remove the eye from the viewfinder. Since the image in the electronic preview mode different from the view seen through the optics, I am always full of curiosity before I press the shutter. I excited to know how the camera would interpret the exact same view I am seeing. To be said, this experience is not for everyone. My wife does not like the fact that the lens is visible in the viewfinder. She always has been more fascinated by the image on the ground glass of a medium format SLR. A rangefinder-style optical finder does not show the depth of field. Everything is up to the imagination of the photographer, except this case the camera shows the result an instant after the actuation of the shutter.

Eva & Adele, Watermusic, 2003/04

The lens

Over the years there were several changes to the X100 cameras. The sensor and the processor have been updated many times. Autofocus and operation speed have been greatly improved throughout generations. Even the viewfinder have seen some changes. As far as I know, the only remaining constant is the lens. If it ain’t broke don’t fix it. This lens is definitely noteworthy and I think it is a big part of the X100 experience. I enjoy using the aperture ring very much. Has a good feel to it and also good to look at. The leaf shutter built into the lens is very quiet and lets me sync flash with any shutter speed. Of course, the drawback of the leaf shutter is that the maximum shutter speed depends on the aperture. The more the lens is open, the lower the maximum shutter speed gets. Luckily there is a built-in ND filter in this tiny lens. This way it is possible to shoot wide open on a sunny day with mechanical shutter without any extra accessory. Because the lens is the same on any version of the X100 family the adapter lenses are compatible with all of them. Did I mention how small this lens is? It is very comparable with my Voigtlander Color Skopar 35mm f/2.5 pancake lens in size. I have always been a fan of pancakes despite the optical tradeoffs they need make for the sake of small size. In fact, the Fujinon 23mm f/2 is also not flawless. It could get a little soft wide open and it shows slight distortion as well as a moderate amount of vignetting. The latter two can be easily corrected in post-processing or in camera on later models.

Fujinon XF 23mm f/1.4 is massive compare to the built in 23mm f/2 lens built into the X100.

Bokeh

Bokeh is, of course, a very subjective quality. Personally, I find the bokeh of the lens mounted on the X100 alright. Not amazing by any stretch of the imagination, but pretty decent considering that it is a wide pancake lens with only a moderately fast f/2 maximum aperture. I have tried to compare it against my own 23mm f/1.4 Fujinon lens. You can find a comparison below. In the first example, the XF 23mm f/1.4 produces the smoother result in my eyes on f/2 but the difference is not very big.

If the background is further away it is even harder to tell the difference. Could you tell from this second example which photo was taken with which lens?

The XF 23mm f/1.4 is a sharper lens and it can open up more. At f/1.4 there is no competition anymore with the lens on the X100, but it is worth to notice the size and the price difference.

Samples

I have used the camera in as many situations as I could to gain experience with it and collect sample shoots. The following photos were taken during family weekends, walks in lunch breaks and I have even experimented with table-top camera photos with flash and softbox. Post-processing of the pictures varies from slight adjustments to heavy color grading to show what kind of results can be achieved with different approaches. I know that my little portfolio is far from a comprehensive demonstration, but I hope that it gives an idea and some of you will find it interesting.

More Leica M2 comparisons

I just cannot have enough comparison shots of these cameras. They are so similar yet very different.

I have even recreated one of my early Leica shoots with the X100. Originally I use the Leica M2 and it was about 4 years ago. This is a terrible comparison as the installation has changed. No plastic wrap on the metal frame anymore, but we have got an extra cactus. To make matters worse, I have probably taken the first photo with a 50mm lens. Just like the cameras, the photos are similar in some ways, but they are also very much different.

Klasse Tobias Rehberger. More information about this sculpture here.

Final thoughts

Do I like the Fujifilm X100 classic? Yes, I like it very much. It is light and small, good looking and at the same time very capable. But most importantly it provides a unique user experience. I love the viewfinder, the leaf shutter, the ND filter, the dials, the design and last but not least the photos I get out of it. A camera is more than the sum of its component and in this case, I can confirm that there is a character to it. Why haven’t I bought one if I like it so much? I have got some unique cameras already. My heart is still at the film side of the photographic spectrum when I want to enjoy myself taking pictures. That is why I have a Leica M2. For my choice for a digital camera had to be more practical with interchangeable lenses. But it is a Fujifilm camera and it was the original X100 which planted the idea to consider this route at the first place. Would I recommend it? I would definitely recommend the lineup. Perhaps a later model is a better choice with more mature AF system and a newer sensor. But I find the X100 classic perfectly usable today. Just make sure that the firmware is up to date.

Thank you Dominic to borrow me your camera and make this post possible.

If you have wondered, the map on the first picture is strange because it is a World Atlas from 1930. I have found this map in the paper garbage and found it fabulous for backgrounds. The inner side of the cover has the golden pattern which you can see on most of the pictures about the camera.

Digital Classic, Canon EOS 5D

Camerajunky40 Comments

Digital cameras have been around for a while by now. In fact, we have access to pixels so long ago that recently it became fashionable to dress digital cameras into retro looking shells so they resemble the look and feel of old film cameras. Up until now, the more modern looking/more functional design was generally desired, but we reached the point when people started to look back to the golden age of the film era with strong nostalgia and today the retro look become interesting.

Naturally, camera manufacturers were ready to satisfy this need and the market is literally flooded with retro-styled cameras like the Nikon Df, which promises nothing less but the experience of pure photography. While the term “pure photography” can be very much overloaded and interpreted in many ways, what they probably mean is that this camera handles and feels similarly than the now classic Nikon film cameras. Simplicity, mechanical-like external controls, full frame sensor,  compatibility with vintage lenses, limited feature set (e.g. no video) to keep the focus on the essence  of photography and of course that retro look are supposed to deliver this promise.

But when we start to wrap modern digital cameras into so-called “classic” look and market them with the message that this is the closest you can get to film photography experience the question arises can we already talk about classic digital cameras as well.  If so how do they relate to the cutting edge technology inside modern retro shaped cameras? But most importantly, how can the true digital classics stand against the newly invented marketing ideas such as “pure photography”?

Importance of the 5D

Canon EOES 5D with Carl Zeiss Jena Sonar 180mm f/2.8

Canon EOS 5D with Carl Zeiss Jena Sonar 180mm f/2.8 (Pentacon Six mount)

This camera was introduced in 2005 which means it is pretty old with modern standards. But also, it was the very first somewhat affordable full frame digital SLR.  Technologically there was nothing revolutionary about the 5D at all. We have seen full frame DSLR cameras before, and many other parts of it were reused from other cameras like the focusing system which was borrowed from the 20D. But it was very small for a full frame camera and it was cheap enough to be accessible by normal mortals for the first time. Also, it took damn good images on very respectable noise levels at the time.  In this respect, it is hard to deny that this camera was indeed important and maybe it was the camera which started the era of consumer full frame SLRs and even it paved the way for full frame mirror-less cameras alike.

 5D pure photography

I am not sure that we can already talk about classic digital cameras. Also, I think it should not be up to me to define what can be marked as classic and what cannot. But let’s be speculative for the time of this post and agree for a moment with those who already call the original Canon EOS 5D as 5D classic and consider it as a true classic digital camera. Let’s just see if the true digital classic can in many ways match up against something which supposed to make us remember what was it like to shoot with a film classic. I borrowed the elements of the Nikon Df pure photography campaign to use them as a basis for my absolutely crazy comparison.

Sensor size/pixel pitch

Both the Canon 5D and the Nikon Df features standard 35mm film size sensors. This means that field of view of any lens is the same as on 35mm film camera. There is no crop factor to consider.

The Nikon Df has 16.2Mp while the Canon 5D only has 12.7 effective megapixels. The Nikon using a more modern sensor which adds micro-lenses to each individual photodiode and thus utilizing the surface of the sensor more effectively. The Canon, on the other hand, leaves gaps between the photodiodes but due to the smaller megapixel count the atomic pixel size is still higher ( 8.2µ vs 7.30µ). In theory, it would mean better low light performance to the Canon as bigger pixels could capture more light, but the processing pipeline of the Nikon is light years ahead, so the ancient Canon is no competition in low light.

But if we think about this with “pure photography” in mind. If you shoot in good light as our film photographer ancestors would certainly preferred to do so and you keep your ISO low as most film emulsions were/are available in a range of ISO 50-1600, than there are probably not much of a difference between the two cameras. The difference megapixel count is negligible for every day use and  noise levels should be pretty close at low ISOs.

Simplicity

One of the big selling points of the Nikon Df is that it lacks video even though the big brother Nikon D4 (using the same sensor and processor) has it. It indeed helps to focus on photography as you have no chance to accidentally switch to video and there are no useless menu items to confuse the photographer.

The good news is that the Canon 5D had no video points the first place, not even live view. Back then it was actually not sure that mirror reflex cameras suppose to do video ever.

The 5D is very minimalistic in terms of features. It only has the basics, and therefore the menus are very simple. There is literally nothing which could distract you from framing. In fact, it is a bit too minimalistic. One of the features I really miss is the possibility to set Auto ISO. Well, you could not change your film speed either.

Body Shape

Both cameras are quite beefy in my opinion. The Nikon Df supposed to look a bit like a classic Nikon like the FM. In reality, it is still quite thick as a brick and looks like a classic camera only from a good distance. I still think it would have been possible to make the Df like an FM in terms of dimensions. We know it is possible, there are successful attempts to hack the guts of a mirror-less camera into classic film bodies. The 5D is without a doubt, not a beauty, it has a general Canon DSLR look.

Canon EOES 5D with Canon 40mm f/2.8 pancake
Canon EOS 5D with Canon 40mm f/2.8 pancake

External controls

In the “golden days”, we had many dials to control camera settings like aperture, shutter speed, and focus. Nowadays we have many more things to control and we have an electronic coupling for everything.

Canon EOES 5D, Canon 40mm f/2.8
Canon EOS 5D, Canon 40mm f/2.8

Understandably it can be very rewarding to use similar controls to the ones we used on mechanical cameras. Somehow it has sense, as everybody understood the mechanical connection between the aperture ring and the aperture blades. I think it has a sense even today to expose these controls in an old fashion way. But only in the case of a camera which is built for the enthusiast photographer whose goal is to enjoy photography rather than being the most effective picture maker machine. The Nikon Df does a good job in this respect, even though I heard that not all controls are nice to use or logical, but I could not try it myself until now. What I can tell for sure is that the 5D exposes the main settings in a modern, but very effective way. I usually switch the camera on once a day and leave it that way.  I use aperture priority mode with mainly manual lenses with aperture rings and I mainly adjusting ISO and exposure compensation only. Most of the time I  don’t touch any menus at all.

Legacy lens support

The Nikon Df is made to be usable with vintage Nikon glass which is great as many old Nikkors are gorgeous. But the Canon EOS system has a shorter distance between the lens mount and the sensor. This way many other branded lenses can be used on a Canon EOS body with an adapter including Nikon lenses. To be fair you can have an adapter like M42 for Nikon as well, but you either lose the possibility to focus to the infinity or you need to pick an adapter which has additional lens element in it. The later means higher cost and possible degradation in image quality.

All in all, you can put way more kind of lenses to the 5D than you could attach to the Df. But be careful because some old lenses may mount but extract to deep into the camera body when focusing. This could damage the mirror. Always do some research on which lenses can be safely mounted.

Canon EOES 5D with Carl Zeiss Jena Pancolar 80mm f/1.8
Canon EOS 5D with Carl Zeiss Jena Pancolar 80mm f/1.8

The Carl Zeiss Jena Pancolar 80mm f/1.8 M42 thread mount lens, for instance, can be mounted safely to a cropped frame Canon body. But because the mirror in the 5D is bigger due to the bigger sensor, this lens should not be focused on the infinity because the rear lens element can touch the returning mirror. It can be fixed by sacrificing the possibility of focusing to the far distance. I use this lens mainly for close portraits and for this use it is not a problem.

Canon EOES 5D, Canon 40mm f/2.8, Carl Zeiss Jena Pancolar 80mm f/1.8 (M42), Olympus Zuiko 50mm f/1.4 (Olympus OM), Carl Zeiss Jena Tessar 50mm f/2.8 (Exa)
Canon EOS 5D, Canon 40mm f/2.8, Carl Zeiss Jena Pancolar 80mm f/1.8 (M42), Olympus Zuiko 50mm f/1.4 (Olympus OM), Carl Zeiss Jena Tessar 50mm f/2.8 (Exa)

Viewfinder experience

The Nikon Df viewfinder has 100% coverage while the 5D has only 96%.

But it is not possible to change the focusing screen on the Nikon which flaws the of legacy lens support. Today focusing screens are made for autofocus lenses. They are very bright but extremely hard to use for manual focus because the depth of field is not really visible and there is no optical focusing aid built in. On the other hand, I think that using the back screen in live view is not an option if you are pursuing the classic photographic experience.

I would rather use a slightly smaller finder with a proper focusing screen.

Slow down

I think it is generally a good idea to slow down and take the time to compose frames instead of bursting in rapid fire mode. Trust in the law of big numbers in order to achieve the desired photo certainly works, but I would not call it a classic approach. Let’s see what these cameras can do in order to force the photographer to slow down.

On the Nikon side, dial-based controls, manual lenses and a wrong type of focusing screen is certainly slow one down. On the Canon side we have no auto ISO and when using autofocus lenses a truly mediocre (painfully slow) autofocus system makes it impossible to act like a machine gun. Also, the burst rate of the 5D is only 3 frames per second.

Finally, the 5D has an awful back screen. It is small, dim, inaccurate in color (greenish cast) and generally useless. But of course, it is a huge plus side in this comparison as the small worthless screen means that you will only face the result of your photography when you download your images. It really reminds me of the feeling of waiting for the images to return from the lab. You never knew what had you done until you get back the developed film, and in this case, until you get to a computer with a proper screen. The good news is that the results look so much better on a proper display that I always positively surprised when I get my images downloaded from the camera.

Old Ladies, (Gyöngyössolymos 2014),Canon EOES 5D ,Ca
Old Ladies, (Gyöngyössolymos 2014),Canon EOS 5D ,Carl Zeiss Jena Pancolar 80mm f/1.8
Márk, (Gyöngyössolymos 2014),Canon EOS 5D ,Carl Zeiss Jena Pancolar 80mm f/1.8
Márk, (Gyöngyössolymos 2014),Canon EOS 5D ,Carl Zeiss Jena Pancolar 80mm f/1.8
Eszti (Budapest, Hungary), Canon EOS 5D, Canon 50mm f/1.8 II
Eszti (Budapest, Hungary), Canon EOS 5D, Canon 50mm f/1.8 II
Gyöngyösi Zsinagóga
Gyöngyösi Zsinagóga (Gyöngyös), Canon EOS 5D with Canon 40mm f/2.8

Conclusion

What makes a classic camera and especially the question of can we at all speak about digital classics is still an open debate.

On the other hand, it is quite easy for me to say that the 5D Mark I or 5 classic if you like, can still fulfill many photographers needs. It certainly is able to deliver most of the recent marketing promise of “pure photography” (apart from the classic outfit). In fact with the interchangeable focusing screens, a bigger variety of adaptable lenses and even slower operation it fits better this promise than the camera which for this marketing campaign was created.

I think both the Canon 5D and the Nikon Df could be just the right camera for you. The Df is certainly stylish and has a lot more power under the hood. If the best possible low light performance to date is important than no question that the Df is the clear winner.

But consider that 5D is now a really affordable (500-1000€) full frame camera with the capability to be used as a “pure photography” tool if you don’t mind the not so “classic” look. It is better suited for manual focus lenses, and it still takes stunning images. Last but not least the original 5D could be already a classic on its own right.

5D on Camerajunky (Graz, Austria), Sony Nex 6, Jupiter 8

Nikon F3

Camerajunky18 Comments
Nikon F3 in leather half case with Nikkor 105mm f/2.5 and HP prism.

Nikon F3
Nikon F3

Introduction

This classic camera was undoubtedly one of the biggest and most dividing celebrity of the 80’s. At least among professional 35mm SLR cameras of course. It  created quite significant waves in the world of professional photography because with it Nikon finally put the vote on automation and electronics as the new lead design principles.

Nikon and me
I am not dedicated to any brands, so there is no particular reason why I haven’t wrote about any Nikons until now. In fact my very first camera was a digital Nikon Coolpix 3500. It was hideous to use and broke horribly, but still it was my very first camera.Not much later I owned for a short time a Nikon F75 which was the first and until now the only camera which I’ve ever sold. It was a great tool, but it had a monstrous hunger for not so cheap CR2 batteries and it was way too modern for me anyway. The little Coolpix is still lying around somewhere in a box with serious electronic injuries. Who knows just like any other (now classic) camera, maybe one day it will get repaired too.

By the time it was very hard to accept  these changes by the majority of professionals who simply did not trust anything which was depending on batteries more than a powering of a light-meter. It is a bit hard to imagine today but at that time it had a perfect sense. But the change was already on the doorstep and it was inevitable. The previous F models were already masterpieces mechanically anyway, there was very little room for possible improvements in the purely mechanical realm.

The F3 was their first electronically controlled single digits F camera and despite of the early resistance by the community, it found the way to tremendous success and changed the face of the camera market once and for all.

In fact what Nikon did with this camera was nothing really revolutionary or unexpected as all the technology was already existed and tested by lower-end models of theirs or by the competitors. They simply selected the best components available and remixed them in a very attractive package.

I could write a lot more about the exciting history of this camera, but there are other more competent people who just did it very well before of me.  So instead of a week attempt of a complete and deep introduction of this camera, I simply try to give an overview filtered through my own experience.

I can faithfully recommend this site for the historical overview and for all possible technical details.

Nikon F3 HP official structural illustration
Nikon F3 HP official structural illustration

How did I get this camera

Nowadays my collector nature is being held a back because of the lack of time and dozens of higher priority projects. This is not necessarily a bad thing, sooner or later I need to settle and start to master the gear I already have. The negative side-effect is that I am running out of (new) old cameras to review.  But fortunately it turned out that  I can try out and write about a camera without actually owning it. I have a good friend who has a grandfather with a really good taste and since he moved to digital he gave his old Nikon gear to his grandchild. At first I just spot a box of T-max on the shelf at the place of Andrea’s and I asked her in which camera she intend to use it. Eventually she showed me a really nice bag full with vintage gear including the F3 with motor drive, many great lenses, matching flash unit and many more gems. Few weeks later (when I have recovered the shock, found my jaw and gathered enough courage) I asked her if I could try out the gear. She said yes, so the post you are reading now couldn’t be written without her kindness.

Data sheet

  • Type TTL auto-exposure 35 mm. Single Lens Reflex Camera.
  • Produced 1980-2001
  • Film type 24mm x 36mm
  • Weight 780g (body without lens, but with HP prism, batteries and film loaded)
  • Dimensions (HP version) 148.5 x mm height, 101.5 mm width, 69 mm depth
  • Lens mount Nikon F-mount
  • Shutter electronically controlled, horizontal-travel titanium focal-plane shutter
  • Shutter speeds 8s-1/2000s, B, Aperture priority,  1/60s can be used mechanically without batteries
  • Sync speed 1/80s
  • Viewfinder various interchangeable finders
  • Exposure meter full-aperture TTL centre-weighted exposure measurement at (80/20)
  • Batteries   Two 1.5V silver-oxide batteries SR44 (Eveready EPX-76) or alkaline manganese batteries LR44
  • Self-timer 10s delay electronic self-timer
  • Hot shoe special accessory shoe on the rewind knob supporting TTL flash units; PC synchro socket.
  • Motor drive optional MD4 motor drive up to 5.5  frames per second with mirror lock-up
  • Mirror lock-up
  • Depth of field preview
  • AE-lock
  • Multiple exposure lever
  • Exposure compensation

First and second impressions

When I first had a closer look, I was not exactly impressed. The camera was bit dusty and showed marks of very extensive use. Nothing serious, but I really had the impression that the camera may had some mechanical issues. Nevertheless I took my time, and cleaned the dust and smudges carefully.  During the process I had to realize two very important things. First of all never give up on an F3, these cameras are very hard to kill, no matter how they look like there probably nothing wrong inside. Second of all it has many buttons and switches which I had no idea what are they good for. I have seen many unusual designs like left handed Exactas and other marvels, but the F3 control layout gave us some rounds with Google and the user manual.

Nikon F3 with MD-4 motor drive, Nikkor 28mm f/3,5 and HP prism.
Nikon F3 with MD-4 motor drive, Nikkor 28mm f/3,5 and HP prism.

I also cleaned the lenses belonging to the F3 and since they were protected with  filters all of them were in an excellent condition. They feel a bit dry to me in terms of lubrication, but otherwise focusing very smoothly and precisely. Maybe they act completely normally, only I am not so familiar with Nikon AIS lenses.

After I finished the cleaning of the gear and finally powered up the camera, the moments I spent with trying out every part of it lead me to the conclusion. You can trust this camera. The more I use it, the more I trust. The sound of the shutter, the feel of the advance lever, the snappiness of the motor drive all ensure this feeling. After all this image what a professional camera should show about itself.

Things I love about the F3

As I said the Internet is loaded with much more established articles about the Nikon F3, therefore the very best I can do is to share my personal opinion about it. Let’s start with the things I most appreciate in this camera.

Look and feel

Nikon F3 in leather half case with Nikkor 105mm f/2.5 and HP prism.
Nikon F3 in leather half case with Nikkor 105mm f/2.5 and HP prism.

The F3 is an important milestone in the history of Nikon, but not only because of the technological aspects. This was the first Nikon which appearance was designed by the Italian designer Giorgetto Giugiaro.  He introduced the red mark on the grip, which is an unmistakable characteristics of every Nikon SLRs since then. Indeed, this camera looks different from every previous models and can be distinguished with ease from the competitors as well.

Personally, I like the previous F shapes better, but I have to admit that the F3 looks all right and it also handles great at the same time. The small grip contributes to the secure holding, and I find it very clever how it fits together with the motor-drive.

Butter smooth operation (excellent mechanics)

Every part of the camera carries the marks of mechanical excellence.  Even the smallest moving piece is doing its job with minimal resistance and completely free from any inappropriate noise.

There is virtually no difference in the operation of the film advance lever with and without film loaded into the camera. It is really that smooth that you can have a hard time to say that the camera loaded.

The mirror flips up quietly and gently as well, it produces very little camera shake compare to my other SLR cameras.

Viewfinder experience

For me one of the most important aspect in a camera is the viewfinder experience, and this is where the Nikon F3 really shines.

First and foremost this camera features a modular design, which allows you to choose from a huge variety of focusing screens and finders. This particular kit came with a HP prism and with my all times favorite waist level finder.

Nikon F3 in leather half case with Nikkor 50mm f/1,4 and HP prism. Waist level finder next to it.
Nikon F3 in leather half case with Nikkor 50mm f/1,4 and HP prism. Waist level finder next to it.

The HP abbreviation stands for High eye Point which provides a proper picture in the finder from the viewing distance up to 2,5 cm. This is especially beneficial for those who wear glasses, having larger than average nose or don’t want to squeeze their eyeball into the finder window. Although I don’t wear glasses, I still find convenient to use this finder too. The downside is that the image is slightly smaller than the one found in the usual prism. The finder window is round shaped, which looks very nice and professional in my opinion . The prism also features a window-blind to prevent light entering and thus altering metering results when shooting on a tripod.

I mentioned that waist level finders are very close to me, I have got used to the work with them with my Pentacon Six. Due to the lack of any additional optical elements (prism, mirrors), this finder gives the brightest and crispest image possible which indeed looks marvelous when using the F3.

Viewfinder mock

But the best part of this camera is the way it indicates shooting parameters in within the finder.

A small LCD display shows the shutter speed settings, while the actual aperture marking (from the lens itself) is projected into the finder. In other words, you really see your lens marking in the viewfinder. I simply cannot imagine any cooler solution for this problem.

These information windows are built into the body, therefore all compatible finders benefit from them. The same information can be read in the HP prism and in the waist level finder.

Light metering

But how is the light metering done? Traditionally the metering cell/s are located in the prism.  Obviously it cannot be the case with the waist level finder, besides all readings are passed from the body to the finders.

In case of the  of the Nikon F3, the metering cell is located in the body to support the interchangeable viewfinder design. The cell is located at the bottom of the mirror box facing backwards to the direction of the film. There is a small secondary mirror underneath the main mirror in order to transfer the light for metering. The main mirror is semi transparent at the middle thus the secondary mirror can reflect part of the light to the metering cell. The secondary mirror moves synchronously with the main mirror.

This layout has another benefit of being capable to measure the light reflected back from the very surface of the film being exposed. This way real time exposure control is possible which is essential with TTL flash photography.

1/80s before the first frame

Have you ever tried to load a semi automatic camera with the lens cap on? I committed this mistake quite a few times with my Olymous OM 4. Normally, because the lens cap is on, the camera calculates a very long exposure time so you need to wait a lot before you could get to the next frame. This could be really annoying especially when you are in hurry. Of course, if you set your camera to manual mode during loading, this is not an issue at all, but somehow I walk into this trap quite often.

It seems that the engineers of Nikon knew my kind and built in a mechanism which sets the shutter speed to 1/80s until the frame counter reaches the 0 marking. This prevents me to fire a 30s exposure during film loading.

This can be a disadvantage to those who tries to get the maximum amount of frames out of every roll, but personally I think it is a really nice and clever feature.

Small touches everywhere

The Devil is in the details.  If you take a closer look on this camera, you can notice a numerous fine details which aren’t that necessary to operate the camera, but contribute to the overall feeling. They make you feel confident that the camera you are holding is a very special and fine tool.

Some of the little details are not unique to this particular model, but characteristics of the Nikons at this era.  For example I like the screw cap of the battery compartment. It has a small plastic holder, which positions the batteries and it has a clear graphical indication, how the batteries should be placed.

There is a lock on literally everything which can be accidentally moved such as shutter speed dial, film rewind, exposure compensation and mechanical shutter release. There is no way, you accidently change a setting or open the camera.

Ever-ready case is the best I have seen apart from 3rd party manufacturers.  It can be used as a half case, it lets you see the film notes at the back and it is very stylish.

The window blind on the prism, the mechanical shutter release, the way they implemented multiple exposure control are all very fine details.

Things I don’t like so much

Actually it is very hard to find anything  to not to like on this camera, but I have managed to put together a short list.

Weird switches

Nikon F3 weird switches (Can you spot the self-timer? it is actually around the shutter speed dial)

Probably because the F3 is a completely new breed of  industrial design among Nikon cameras, they had to make compromises here and there. Some switches such as self-timer and the on-off switch are a bit small and less intuitive to use. It took me some time to figure out what is the self-timer switch is doing. But the weirdest button of all is the little red rectangle just below the finder. This is used to illuminate the shutter speed information screen in the finder. It is hard to find and even harder to press during composing  a frame. You need to use one of your  fingernails to be able to push it.

Hot shoe

Because of the interchangeable viewfinder design, the hot-shoe could not be placed at the top of the prism, therefore and alternative solution was needed. The Nikon F3 has a very interesting non standard flash shoe combined with the film-rewind lever. This part of the camera gives home to the film speed settings and exposure compensation.  To use flash, you need a special flash or an adapter.

Test shoots and answer to the scanner crisis

I have asked specifically the guys at my favorite camera shop and photo lab to scan my negatives without over-compressing the resulting jpg files. But they managed to give me once again 50% compressed garbage, therefore I officially gave up on them and decided to give another shoot to my old scanner. This time however, I tried out SilverFast (again) instead of the factory software I used and finally I have found the common understanding with this software. It really gave a new life to the old scanner of mine. I love the possibility to reduce noise by multiple scanning. I still think that this is not the final solution for my scanning crisis, but for the time being it is an acceptable compromise.

Click on the photos for full resolution versions so you can really see the quality of the scans! If you feel like, I would be happy to read your opinion in the comments section about the quality of these shoots and of course about the photos themself.

Barbara
Barbara (Graz, 2013) Nikon F3, Nikkor 50mm f/1,4, Kodal Portra 160 (Expired), Canoscan 9900F

Olympus OM 4 Ti vs Nikon F3

I know that this is not a fair comparison since the OM4 was released a few years later, yet both cameras represents the top of the manual focus models in their respective brands. Both of them shares the formula of manual focus, electronically controlled horizontally travelling shutter with mechanical back-up, aperture priority auto exposure, somewhat similar light metering system with TTL flash control and separate motor drive. It would be better to compare the titanium versions, but at the moment  I have my hands only on the normal F3.

Obviously the OM4 Ti feels more solid despite its lighter weight. It is smaller and you really can feel that this is a weather sealed titanium body. The F3 feels also solid in my hands, but  not the same. I prefer my OM 4 Ti when it comes to build quality. Again the F3 titanium would probably compare differently.

The multi-spot light metering system of the OM 4 is also superior to the F3, although I had no issues so far with the Nikon even when using flash. On paper though the Olympus offers more in this aspect. It has to be said that the OM 4 is a newer camera, therefore this comparison is not entirely fair neither.

Olympus OM 4 Ti vs Nikon F3

The viewfinder experience is better on the Nikon due to the fact that not only the shutter speed, but the aperture values are shown in the finder. However the OM4 warns you right in the in the viewfinder when exposure compensation is active while the Nikon shows nothing. Both cameras can benefit from a wide variety of focusing screens, but of course the Nikon has the possibility to change the whole finder.

In terms of electronics, I feel more confident with the Nikon, somehow it feels as a more bulletproof system to me. The clever solution of fix 1/80s for the first shoots before the 0 frame and the very long battery life all gives me a good feeling.  The Olympus has a very mature system, but I had some troubles with week batteries and the battery life is also less.

At the end both cameras are excellent choices and I think both can do the job equally well. The F3 offers more features such as mirror lock-up, multiple exposure, interchangeable finders,  high eye-point  prism, but the OM 4 is smaller, features a very unique and excellent light metering and flash system and has a rather classical look.

But no camera worth anything without compatible lenses. I think that the OM lineup is strong enough, but Nikon is definitely has a serious advantage here. So if you are about to choose between these 2 cameras or similar models, consider your lens needs first.

I own the OM4 and I will need to give back the F3 soon,  and while I really enjoyed the time with the Nikon, I still appreciate the Olympus look so my camera-bag remains intact.

Conclusion and recommendation

If you would like modern, but  manual focus camera which you can trust with no compromise in features and don’t mind the size, than this is the camera for you. I think the F3 is affordable today and you can use a really impressive set of affordable quality lenses as well. The motor drive is not my thing, but indeed it can make this camera a speed daemon (~5 fps) as long as you can handle the focus. TTL flash photography is also among the features, but keep in mind that you need a special adapter or a compatible unit.

I really like this camera, it is a pleasure to use, it does look stylish and it has the coolest aperture indication in viewfinder ever. So if you like it, grab one in good conditions and you will not need another camera for a long time because this oe will never let you down.

References

Fun

Nikon F3 in Area 88
Nikon F3 in Area 88

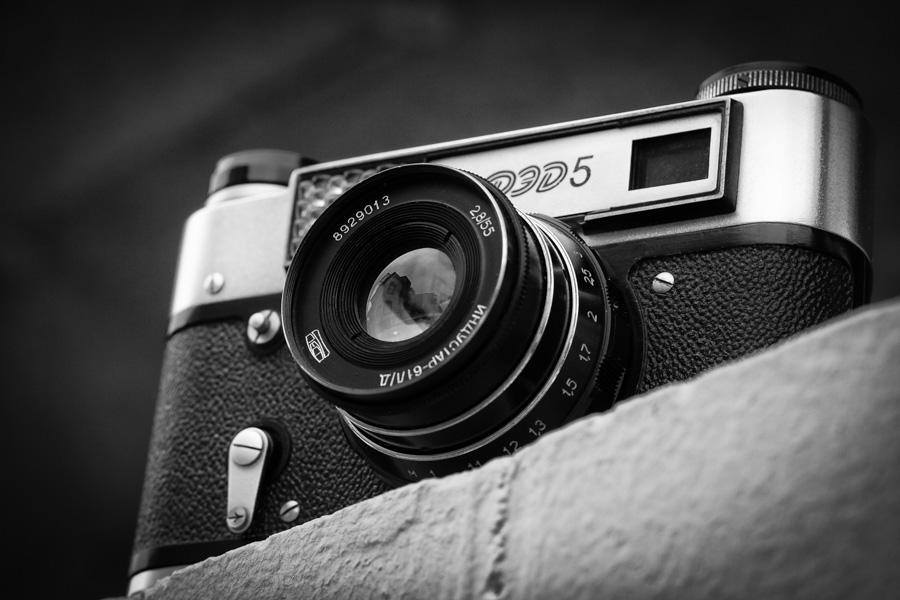

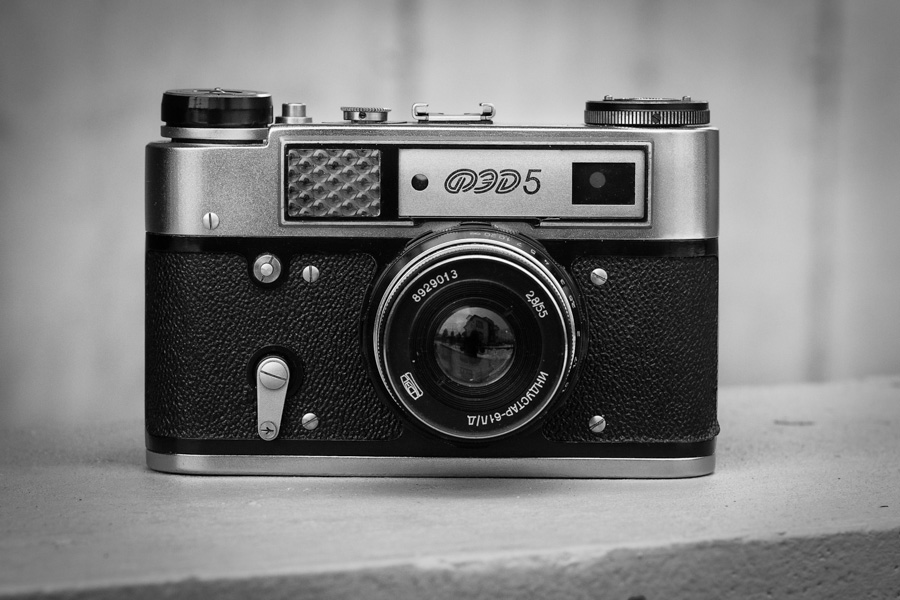

Fed 5 the Ultimate Post-apocalyptic Camera

Camerajunky22 Comments

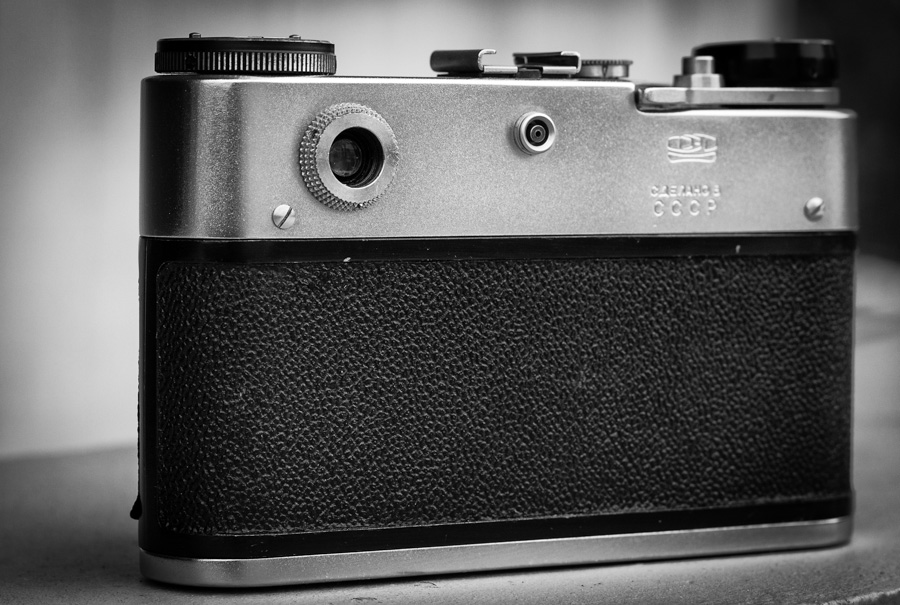

The Fed 5 is one of the most feature-packed Soviet rangefinders which does not require a battery. It is virtually undestroyable, I bet it is going to stay operational way after mankind extinct and the cockroaches rule the world. Since it has no battery an EMP blast cannot ruin it. A nuclear winter could not make any difference neither as the kit lens (Industar-61L/D) is already rumored to be slightly radioactive.

The fact is that the lens is actually is not more radioactive than a potato (not from Chernobyl). It contains a rare-earth element called Lanthanum which indeed has a radioactive isotope but that is very rare and not used for the glass in this lens. Do these properties make the Fed the Ultimate Post-apocalyptic Camera (UPAC)? Who knows, but I hope nobody will need to prove that I was wrong or right about this.

Anyway, I hope I have managed to catch your attention with this little intro, if you want to read my personal experience with the Fed and/or want to be a bit entertained, click more!

My feelings about my Fed5 are very ambivalent, I simply cannot decide that I actually like it and should shoot more with it or I would better keep it in the dark deep down in the cabinet. It was the very first camera in my vintage camera collection and this fact itself grants the special label in my virtual camera catalog.
So here is the camera which kicked in my collector instinct and triggered the process which leads to this classic camera blog you are reading right now, yet I wrote I have mixed feelings about it. Let’s just say that the beginnings of our relationship were not an easy ride.

Never trust your old man

At least don’t trust his film development skills if he did not touch his film development kit like 20 years ago!

Shortly after I received the camera, I and some of my film enthusiasts friends set up a nice shootout in the neighborhood. They came to visit from another part of the country so we did visit all the nice places we could reach in 1 day. Of course, we burned through a couple of rolls of black and white film through our cameras. We had a great time, great locations, superb light and most of all very high level of excitement about the results.

First shooting with the Fed 5 (Ricoh Gr Digital)

We were so eager to develop our films in the bathroom that we completely trusted my father’s rusty memories and we did not “waste” much time for research. We did almost everything right, we kept the development instructions found on the film boxes, but we placed the films into the tank, not in complete darkness, but we used red darkroom lights.

As a result, all of our precious frames were ruined. Only 2 shoots survived somehow but they were also badly damaged by our careless treatment. Later I have enlarged these photos and despite they are not the top quality, I like them a lot. Eventually, these are the first photos I developed myself.

This first-time “failure” was almost inevitable for a bunch of reckless fools who we were. It taught me to be more patient when it comes to film photography and I think it is somewhat the point. You cannot rush with film and old gear, you must wait some time for the results. The waiting for the magic to happen is really spiced up the process to me. If you want the output fast, go pick up a digital camera (I also have some).

Great things

The feature set is quite outstanding among other Fed cameras and I think it provides (on paper) everything which I would ever need in a classic camera.

  1. It has a single stroke film advance lever which is connected to an automatic film counter mechanism. This lever is a huge improvement over the previous film advance knob used in the Fed 3.
  2. The coupled range-finder/viewfinder is also handy, and diopter correction is possible and for the first time, it is not prone to accidental adjustments.
  3. Also, it has a hot-shoe which is quite a big thing, so convenient flash usage became possible, and an additional flash-cable port is also available.
  4. The camera features a built-in light meter which does not require any power source apart from the light it is measuring, so you can never run out of batteries. The needle display of the meter and the related mechanical calculator makes the top plate rather cool looking.

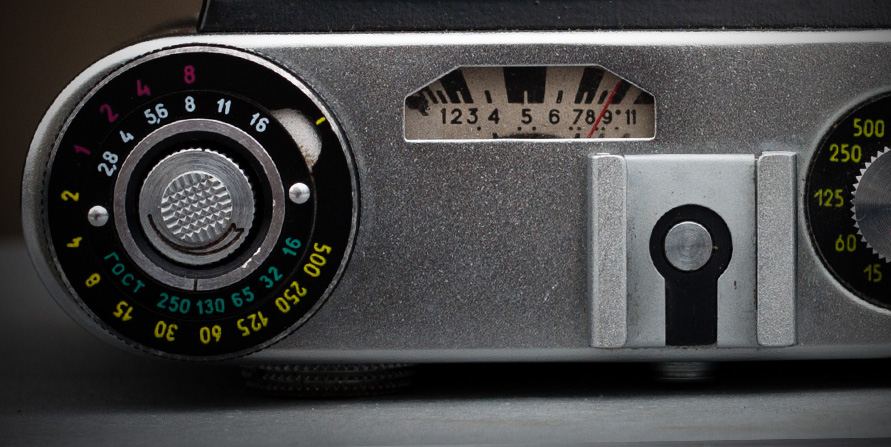

Fed 5 top plate detail

The top plate looks so great that it inspired me to make a little comic where a similar instrument is used as a radiation meter on an imaginary space station.

It is ugly

As we all know everything comes with a price. This case the built-in light meter required a hell lot of extra space and eventually, it leads to a new shape which is very unpleasant to my eyes. I like the shapes of the older Fed (1,2,3) models. The older it gets the better it looks (and the closer to the Leica 2). The fed 4/5 are very brick like in my opinion because of the enlarged top part.

Fed 5

Fed 5

Fed 5

Hard to use

Yeap, this camera is nothing but easy to use. First of all the viewfinder is small and dark. Maybe it is only my version, but the glass has a very heavy greenish cast, which holds back a lot of light. In addition, it is very hard for me to see the boundaries of the frame. In general, it is a challenge to compose with this viewfinder. Don’t get me wrong, it is absolutely usable and I had no problem with focusing so far, but the composition is an issue.

The frame counter is a nice to have feature, but it adds some extra resistance when you try to advance the film. It could give you the impression that something is broken inside the camera. I have got used to FSU cameras, so strange sounds and resistance during film advance are not new things to me, but this camera could be scary even for me.

The light meter is completely worthless, as selenium cells do not age well and they became inaccurate after a few decades for sure. Mine is working acceptable in good light, but as it gets darker the more it gets unreliable. I think it is possible to replace the cells, but usually, I can take my time to measure the light with an external meter. Still, it is too bad that the light-meter is actually the reason for the new shape (I don’t like) and now it is more or less serves as extra weight I need to carry.

Conclusion

On one hand, the Fed5 has a poor viewfinder experience and I am not the biggest fan of its shape. On the other hand, this is my first vintage camera. It never failed me and actually, this is the only L39 mount rangefinder camera of mine which has a reliable shutter so I can test such lenses only with this body.

I am mainly an available light shooter, but I like to have a hot-shoe and I already used the one on my Fed.

If you are looking for a rangefinder but you have a small budget and you want to use flash, you can’t go wrong with this camera. It will survive all of us and keep going to take pictures as long as somebody can press the shutter.  Plus it can be turned into an effective melee weapon against polar bears.

Links

Samples with Industar 55mm f/2.8 N-61 L/D

Bus stop (Miskolc 2010) Fed 5, Industar 55mm f/2.8 N-61 L/D

Eszter (Miskolc 2010) Fed 5, Industar 55mm f/2.8 N-61 L/D

Lord Percy and Magni (Miskolc 2010) Fed 5, Industar 55mm f/2.8 N-61 L/D

(Miskolc 2010) Fed 5, Industar 55mm f/2.8 N-61 L/D

Pajtás

Camerajunky10 Comments
Gamma Pajtás Box Camera

Pajtás is a simple box camera made in Hungary in the 50’s/60’s and as you would suggest this was not a high-end piece of technology even at those times.

Normally I seek for perfection in photography and related equipment and I try to write about cameras here which are capable to produce respectable results or at least represent fine craftsmanship. The Pajtás is far from perfect in any of the aspects of build and image quality, therefore it was not particularly exciting for me until now.  So why do I yet write about this camera and most importantly why should you read this review, knowing that I will probably conclude that this camera is crappy but lovely at the same time?

My first and probably strongest reason is that this camera is one of the not too many which were made in my homeland and therefore holds a significant value for me. It also means that this camera is not as well known outside of my region so unless you live in Hungary or nearby, there is a pretty good chance that you have never heard of it.

On the other hand, the Pajtás could be interesting for those who like the history of photography or history in general because of several reasons. First of all this camera features an Achromat lens which can give us an insight into the dawn of photography as the very first daguerreotype cameras had lenses with similar construction. In other words, the images taken through the lens of this box machine can show us a little bit of the taste of the character of the photographs that were taken centuries ago.

In addition, this camera is an iconic relic of industrial design from a not too distant, yet completely different era where the market was driven by strange forces. These were among the toughest years of socialism in Hungary. Production was planned in 5 years cycles and there was literally nothing that was impossible to sell.  In these times this camera was the affordable and available option for almost a generation.

Through these glasses, we might see this camera a little different and at least for me, it is special to hold and even better shoot with it.

All in all, if you are interested in history, strange unique cameras, or even Lomography than this article is for you.

Pajtás drawing

The story

As always I try to collect as accurate information about the history of a camera as possible, but it is possible that I state something wrong. If I did, please send me an e-mail or leave a comment. Corrections are always welcome.

Around 1960, This photo is part of the Fortepan collection of 19041 amateur photos. It is licensed under CC share alike Hungary.

The members of the young pioneer organization were called Pajtás in socialist Hungary. It was the equivalent of the word comrade for young people. Oddly I had no idea about this meaning of this word until I started to read about this camera. But it has to be said that I was born in the 80’s when socialism was already quite melded in Hungary.

As the name suggests, the camera was intended for a young audience and it was extremely successful. It was affordable, reliable and most importantly available, so many had received a Pajtás as a present for various occasions such as graduation.

The camera was made between 1955-1966 by Gamma although the emblem has changed to FFV from 1960. FFV stands for Fővárosi Finommechanikai Vállalat (Metropolitan Works for Precision). Interestingly Gamma is still an existing company, even though they don’t manufacture cameras anymore.

The designer was János Barabás (1900-1973) who was mainly responsible for lens design at Gamma and we can thank him for the many great lenses used by Hungarian cameras.

The price of the camera in 1964 was 160 HUF and it was possible to buy a leather case for an additional  45 HUF. [1]

Pajtás datasheet

  • Type Box camera
  • Country Hungary
  • Company Gamma, FFV
  • Designed by János Barabás [1]
  • Production dates 1955-1966
  • Quantity 100.000 approx
  • Film type 120 type roll film
  • Lens Built-in Achromat f/8
  • Apertures f/8, f/11, f/16
  • Shutter speeds 1/30s, Bulb
  • Focus fixed
  • Body material Bakelite
  • Weight 395g

Construction and operation

The camera is almost as simple as possible. It is made of Bakelite which allowed mass produce it on a low price.

The back has another nice feature, a little red window which keeps us informed about the number of the actual frame. Basically, the back of the film (in fact the covering paper) is visible through this window so you can see the printed numbers on the paper. While this is a robust solution, it is advisable to cover this window most of the time, especially if you use higher sensitivity film.

The film can be advanced by a knob at the top of the camera while you have to keep an eye on the frame counter window. There is no other way to determine how much you need to advance the film but to look at the window. This mechanism also makes it easy to take multiple exposure or overlapping shoots.

  • Pajtás film advance knob
  • Pajtás shutter release

The shutter release is a simple column and a rotating switch around it with two positions. The red dot means locked and obviously, the white mark indicates that the shutter is free to press.


Viewfinder

Since it is not possible to focus with this camera, the viewfinder is rather simple. It contains a lens for correct framing, but this is not a great pleasure to use. It is bright enough but considerably blurry to my eyes.
To be fair, this viewfinder does the job just well enough. It gives you some approximation about what will be on your photograph and if your subject is not too close the parallax error is not significant.

Pajtás top

To be fair, this viewfinder does the job just well enough. It gives you some approximation about what will be on your photograph and if your subject is not too close the parallax error is not significant.


(Left) shutter-speed and aperture settings, (right) aperture mechanism concept

There are only 2 shutter speeds available M (Moment) 1/30 sec and T (Time) which stands for bulb. There is a better offering in aperture settings though you can select f/8, f/11, and f/16 options. Both the shutter speed and the aperture settings can be selected with dedicated dials on the front plane of the camera right below the lens.

Pajtás in leather case

All apertures are completely rounded and as far as I can see (without disassembling the camera) it is done by a metal plate with 2 holes on it. When the maximum f/8 aperture is selected, the plate is completely off the way, but as you turn the switch for selecting smaller apertures the appropriate hole slides into place behind the lens.

Pajtás in leather case

The leather case is pretty nice, it protects the camera very well. In the meantime, it has a hole in the back to read the frame-counter without dismounting the camera. My only concern is that you cannot separate the front part of the case (covering the lens) so you cannot use it as a half case.

The lens

The lens is an 80mm f/8 Achromat manufactured by MOM (Hungarian Optical Works). It is a classical landscape lens consisting of 2 elements: a positive crown and a negative flint element.

The lens which was designed and manufactured by Charles Chevalier for Daguerre was an achromatic landscape lens in the 1830s. Although that lens was different from the one that can be found in the Pajtás, the basic concept is the same. The achromatic lens was a huge step because for the first time it corrected some of the main aberrations which can be found in an optical system.

Achromatic doublet

An achromatic lens or achromat is a lens that is designed to limit the effects of chromatic and spherical aberration. Achromatic lenses are corrected to bring two wavelengths (typically red and blue) into focus in the same plane.

Wikipedia Achromatic lens

These lenses are typically featuring low apertures because the rays entering the lens far from it’s axis need to be cut off by the stop in order to maintain image quality.

The lens used in the Pajtás camera gives no big surprises. It is focused to the hyperfocal distance so everything on the photo from some near distance will be sharp. It is also supported by the relatively small aperture, that is why depth of field is quite big.

The lens looks coated as I can see some purple cast on it when the light is appropriate. In general, it is not too prone to flare. Of course, there are not many elements in the lens so there are not many surfaces to bounce and reflect on. On the other hand, the interior of the camera is highly reflective so flocking could probably improve image quality and contrast.

Image quality and sample shoots

As you would expect, the image quality is not at all amazing. It is decent from a camera like this and I have to admit there is some charm of the strong character. Sure, most of the effects produced by the lens can be mocked by clever applications on any smartphone, but that is not the same. You must know that you work with a high random factor when you shoot with this camera.

(Graz, Austria), Pajtás, Lomo Lady Gray 400, Kodak D76, Canoscan 9900F

So far I shot only 1 roll of Lomo Lady Gray 400 film with this camera as the first trial. In general, an ISO 400 film is probably too fast for this low shutter speed, but since winter is coming and we are having many dark days it was a good choice. I have some Hungarian Forte Supercolor 100 film in my refrigerator (expired in 1995) which could be a stylish combination with this camera.

Distortion test (Graz, Austria), Pajtás, Lomo Lady Gray 400, Kodak D76, Canoscan 9900F

The lens is sharpish in the center but blurs everything off around the edges. It sometimes even creates the impression of shallow depth of field, but this is not the case.

Distortion is apparent, but I couldn’t hold the camera perfectly perpendicular against the staircase and my scanner is also not the best in keeping the film flat. Anyhow, I think that the geometrical distortion is not the biggest issue compromising image quality here.

Camerajunky (Graz, Austria), Pajtás, Lomo Lady Gray 400, Kodak D76, Canoscan 9900F

The numbers and circle signs on this shot (almost all shots have some) belong to the back of the covering paper of the film. I am not sure how they managed to get to the photos, but they did. If anyone has any idea, I would be happy to read it in the comments.

Also, there are signs of light leaks on almost all of my shots. This most likely happened, because the camera does not seal light perfectly. I am seriously considering to use some black tape next time I put the film into my Pajtás.

Tram reflections, (Graz, Austria), Pajtás, Lomo Lady Gray 400, Kodak D76, Canoscan 9900F

This frame was partially overlapped because of my fault. I have not transferred the film correctly.

Cycles (Graz, Austria), Pajtás, Lomo Lady Gray 400, Kodak D76, Canoscan 9900F

Using flash

There is no flash connection on this camera, so in theory, you cannot use flash with it. On the other hand, the 1/30 of a second is slow enough to fire flash manually at the right time. But probably the best strategy is to shoot in bulb mode in very low light or in complete darkness and fire the flash while you keep the shutter release pressed. I have done some successful experiment with the latter technique so I can recommend giving it a try.

Conclusion and recommendations

The Pajtás is not a rare camera, it is extremely cheap and just as light to carry. It is extremely easy to use as well. I believe it is even able to produce nice images in good hands.

Because of the simple construction there is literally nothing which could break in it. It is relatively safe to pick one with good cosmetics as it is almost certain that it will work properly. Eventually, this is not the camera we would expect completely accurate shutter speed from.

My only concern is the back which is a bit flimsy to me, but it can be secured by some black tape. And of course the Bakelite body is very rigid and therefore fragile, so it is advisable not to drop it.

If you like box cameras and the imperfection of the images they produce, or you are a fan of the retro design, then this camera could be a good choice for you.

Further reading

Big thanks to Ivan for the English proof reading!

Pentacon Six TL

Camerajunky21 Comments
Pentacon Six TL in half case, Carl Zeiss Jena Biometar 80mm f/2.8

Introduction

I have a very special relationship with my Pentacon Six TL camera since it is my only working medium format camera. I was always heavily attracted by medium format photography, but I couldn’t afford for a while to get into it. Eventually, the P6 was the camera which allowed me to shoot 6×6 frames and since then I have not to regret my decision nor had a single thought to change to another system. In this post, I tell my story with this camera and try to show both the bad and the good things about it while hoping that some of you can find this information useful. It will be more like a subtract of my personal user experience and all the important bits I learned during my research.

My Pentacon Six story

I was a student at the university sometime around my second year when I first heard about this camera. I have just started up an experimenting film with an old Zenit-E when my buddy and roommate showed me a website with lots of photos and a description of the P6. Both of us got pretty excited when we realized that there is a world beyond the 35mm film, so we started to google and find more information about this beast. Unfortunately, I had no money at this time to simply buy one on eBay, therefore, I almost abandoned the idea until I found a Pentacon in a repair-shop next to my sister’s old apartment where I helped her to move in. The camera was broken, not complete and had no lens. It was literally a looted old donor of a camera. Despite the conditions of this camera-corpse, I was amazed by the size of the thing. It was huge, much bigger than I have expected after all the photos I have seen on the Internet, especially the lens mount was extraordinary sizeable compare to anything I have seen before. I could only wonder what a hell of a lens could possibly fill this gigantic hole on the front of the camera.
From this moment, there was no return. I knew I had to get one of these monsters, but I still had to find the right one, which turned out not to be that difficult at all.
A few weeks later I found a little shop in a small village next to my hometown by accident. I had spotted an ancient Russian enlarging machine in the shop-window so I stopped by and found a great repairman and a huge cabinet of precious vintage cameras and other relics. As you have already figured out, he had a nice Pentacon Six TL in the shape I was looking for. The camera was there for cleaning, but the owner hasn’t fetched it for many years.
It was not an easy deal because the guy was not really keen to sell anything from his collection, but eventually, I got my Pentacon Six with the standard 80mm f/2.8 Biometar lens made by Carl Zeiss Jena and with a waist level finder. Both the camera and the lens were beautiful, nice, clean and fully operational. In fact, it was not really heavily used and in addition, the repairman was kind enough to check the shutter speeds before he handed the camera over them to me.
Since then I have added many additional accessories and lenses to my Pentacon kit so today my collection consists of:

Pentacon Six TL drawing by Eszter

2 Pentacon six bodies 2 Waist level finders TTL pentaprism 2 Carl Zeiss Jena (CZJ) 80mm f/2.8 Biometar 1 CZJ 50mm f/4 Flektagon 1 CZJ 120mm f/2.8 MC Biometar 1 CZJ 180mm f/2.8 MC Sonar (This lens belongs to a friend I just use it) 1 CZJ 500mm f/5.6 MC Pentacon Extension tube set Split image focusing screen Ever ready cases

The way it looks

Bad reputation

Unfortunately, there are not only great things about this camera even if most of the bad rumors are only partially true. So let’s start with the not so nice before we focus on the good things.
Many people think that the quality insurance was not the best during the manufacturing of these cameras, therefore, it is a real gamble to buy one as you may get a pretty bad and unreliable one.
It is true that it is hard to find a Pentacon Six in a good working condition with perfectly accurate shutter speeds, but it has nothing to do with the quality of the cameras. The fact is that these cameras are pretty old and most of them were used for professional purposes where most likely a tremendous amount of film was burned through of them. You should think of them like you would think about an old car, for instance, a VW Beetle. It is a nice car with very few flaws, but since it is old and was driven around the Equator like 30 times you need to pay attention to maintenance to keep it running. You wouldn’t drive a 40-year-old Beetle found in someone’s backyard without checking the oil level, would you? Of course not, so why would you treat a camera differently? An old mechanical camera is just like an old car. It needs some maintenance and care. Of course, if you were a Hasselblad user, you might disagree, but the category and price tag of these brands are completely different, however, the produced images could be very similar.

Typical issues and solutions

I am lucky because I have personally met with only very few issues you can read on the Internet according to the P6.
Most problems are easy to fix during a general overhaul which involves cleaning, lubrication, and adjustments of strings etc.

Slow and inaccurate shutter speeds

The Pentacon Six TL uses a huge canvas focal plane shutter which has 3 implications.

  1. Lenses are cheaper because there is no shutter in the lens
  2. Flash photography is limited to the sync speed which is 1/30s.
  3. The huge canvas needs big and strong strings which can lose their adjustment as time goes by.

Usually, the speed 1/125s is the most accurate, anything faster could be slower than intended if the camera was not used in a long time. The slow times also could be problematic because the mechanical clock could pick up some dust.
The solution is an overhaul by someone who knows what he is doing. The camera must be disassembled, cleaned and adjusted. There are no big worries here if you casually use your camera this does not have to be done too often, maybe once in every 10 years.

Overlapping frames

This problem is much more apparent than the previous one though. Many people have this problem of “kissing” or worse, overlapping frames. I think in most cases this happens because of the improper loose loading of the film. Have a look at this video from PentaconSixExpert on Youtube. I am not saying that this is the only problem because my rolls have uneven spacings between frames too (but no kissing or overlapping so far), but many times it is only because of the way you load the film.

Frame counter

I had no problems with this feature either, but this is definitely one of the weak spots of the camera. I have seen some Pentacons where the back of the camera was modified by adding a little window covered with red plastic to be able to see the numbering at the back of the film. This is certainly a solution, but a very harsh one. You could get the counter fixed by a professional or you could live without it, eventually, you can shoot even if it is broken.

The bright side

Now that we finished off the not so nice things it is time to celebrate and inspect why this system is so great.
If I had to be short I would say we need to have a look at the following aspects to justify:

  • Lenses and image quality
  • Size
  • Flexibility
  • Value/price ratio

Lens choices

The lens selection for this system is just fantastic in my opinion. You can find excellent optics for literally no money (compared to modern lenses) for every focal length from a wide variety of manufacturers most notably Carl Zeiss Jena (CZJ). The lenses I use most of the time, are generally very fast, sharp and joy to shoot with.

It has to be said that even the multi-coated (MC) versions are more prone to flare than modern lenses with similar optical formula, therefore the use of a lens hood is always a good idea.
If you want to read more about compatible lenses, visit the truly great site pentaconsix.com.

Jupiter 8 lenses vs CZJ Sonnar 180mm f/2.8

A friend of mine gave me a 180mm f/28 Sonnar to use. While this is one of the best and most iconic Pentacon mount lenses, I rarely use it, because it is so much bigger and heavier than the not much shorter 120mm Biometar.

Size and weight

The Pentacon Six looks like a 35mm SLR except this is much bigger, therefore, many people call them beefed up SLR or SLR on steroids.
While it is true that they are significantly bigger and heavier than their 35mm counterparts, in fact, the P6 is a rather compact medium format camera which shoots 6x6cm frames.
Yes, there are smaller ones, but those usually do not have the capability to switch lenses or having similar dimensions but with more weight.
If you, like me love to travel with the biggest “sensor” possible then this size/weight aspect could be really important for you.

It has to be said, that this kit could be still awfully heavy especially if you pack more than one lens and a tripod too.

Value for the money

I think the Pentacon Six system comes with a very appealing price nowadays. You can get your body with an excellent standard lens around 100€ and even if you add the extra for cleaning and adjustments it is still far cheaper than most other interchangeable lens medium format system.

The fun I have

Eszter documented how I took a portrait of a painter in Istanbul. I think it reflects my emotions during the usage of this camera.

Shooting with a Pentacon Six TL
Shooting with a Pentacon Six TL, Istanbul (Turkey)
Artist (Istanbul, Turkey) Pentacon Six TL, Carl Zeiss Jena Biometar 120mm f/2.8, Fujicolor Pro 160NS, Canoscan 9900F
Artist (Istanbul, Turkey) Pentacon Six TL, Carl Zeiss Jena Biometar 120mm f/2.8, Fujicolor Pro 160NS, Canoscan 9900F

Personal experience

During the years I used my Pentacon Six, I have gained a lot of experience with it.  So I would like to share some random thoughts I think could be useful for you.

Pentaprism vs Waist level finder

I do have a TTL prism, which provides a correct image in the finder (no switched sides) and can be used for through the lens light readings.

On the other hand, the prism is very dark and the light metering is not very easy to use. It is great to have in some cases, but generally, I prefer an external light meter. There are different brighter prisms available for example the older non-metering version. If I am not wrong the even brighter prism of the Kiev 60 is also compatible and can be attached.

In contrast, the waist level finder is definitely the brightest solution, therefore I use it the most. But it switches the sides of the images in the viewfinder, and you can hold the camera lower than usual to be able to see through the finder. For me, it is much easier to focus with, especially with the little magnifying glass built in.

Despite all of the inconveniences of the waist level finder, the image in it is something really special. I know it is an oxymoron, but it looks even better than reality.  It is huge, bright and vivid, no viewfinder of any 35mm camera can come even close to it.

Focusing

Focusing as always is a critical thing to do when talking about any photography. I had to learn that the depth of field is just way more shallow when you shoot medium format, thus even a slight movement of the camera could cause your subject to fall out of the sharp region.

When I shoot handheld with the 80mm/120mm lenses I try to not going wider than f/4 or even f/5.6 because it still provides nice bokeh, but has some safety in terms of the size of the sharp areas. Naturally, I often find myself shooting wide open (f/2.8) on a street, but it’s always risky to do.

Repairs

Luckily I haven’t had many problems with my cameras, but during the last 6 years, I had some cases where I had to ask someone to help.

I had “the old” (my original) P6 cleaned, lubricated and adjusted one time after I heard some unusual noises from the shutter. Since then it works perfectly. No exposure problems even when shooting Velvia.

My 120mm lens had a stuck iris once which required the disassembly and general cleaning of the lens. This is, unfortunately, a common problem with old lenses.
Conclusion and recommendation

Needless to say, this camera is not for everyone. As long as you can accept that your camera needs some care in a form of regular maintenance, you could be very happy with it. So keep in mind that the final price could be higher than the purchase itself as basic repairs might be needed.

Nowadays it is not always easy to find someone who is qualified to repair old mechanical cameras. Therefore it is best to buy from a trusted source with grantee that you get a working camera. I think it worth the extra money to get an overhauled camera in the first place.

I think this is a great camera, and could be a good choice for anyone who wants to try medium format photography and needs an interchangeable lens solution. If you don’t have the budget for more expensive systems like Hasselblad or Mamiya, or simply want to find the most compact option this could be the solution for you.

So far my Pentacon Six never let me down, the images are just amazing and for me, it is great fun to shoot with.

More samples

Temps de Flors 2009 (Girona, Catalonia), Pentacon Six TL, CZJ Biometar 120mm f/2.8, Kodak Portra 160NC, Canoscan 9900F
Temps de Flors 2009 (Girona, Catalonia), Pentacon Six TL, CZJ Biometar 120mm f/2.8, Kodak Portra 160NC, Canoscan 9900F
Custom bike (Gyöngyös, Hungary) 2009, Pentacon Six TL, CZJ Biometar 80mm, Kodak Portra 160NC, Canoscan 9900F

Links

Big thank you for Ivan for the English proofreading!

Meyer-Optik Görlitz Trioplan 100mm f/2.8

Camerajunky16 Comments

I have already written a few lines about this lens in my Exakta Varex IIa review where I have published some film shots taken with it. Recently I have purchased an adapter which allows me to attach any EXA mount lens to my Canon DSLR so it is about time to inspect a little deeper what is the Meyer Trioplan 100mm capable of.

The Cooke Triplet

The Meyer Trioplan is a classic triplet (it has three strong lens elements separated by sizable air spaces). It is eventually a modern version of the Cooke triplet which was developed by H. Dennis Taylor (1862 – 1943) in 1893.

The simplest design that is capable of correcting all of the seven Seidel aberrations over a wide field of view is the Cooke triplet. H. Dennis Taylor invented this in 1893, using the advances of Seidel’s theory. It is named after the optical company in York, England, for which Taylor worked at the time, Cooke and Sons (later to become Cooke, Troughton and Sims). The lens is described in two very interesting United States patents, Nos. 540,132 (1895) and 568,053 (1896). Taylor’s designs, despite their antiquity, are close to optimum for the aperture and field he intended, given the glass types available in his day. The triplet uses two of the principles of a good design. First, the Petzval sum is corrected by the use of spaced positive and negative lenses, as described in Chapter 9 on telephoto lenses. Secondly, it has approximate front-back symmetry about a central stop, to control the odd-order aberrations, coma, distortion, and transverse color.

Source: Optipedia

Even though countless variants had been patented of the Triplet designs they cannot be considered as original inventions rather routine designs based on Taylors work.[1]

Similar lenses: Anticomar, Cassar, Novar, Meritar, Radionar, Trinar, Triotar, Voigtar, Eurygon.

Cooke Triplet schema f/3 ±22° [1]

Fun facts

  • Taylor developed his own mathematical tools to design lenses and if we can believe him he never traced any rays. His method was to design and optimize the lens on paper until he reached the best possible solution and then he got the lens manufactured. Finally, changes were recommended based on the experiments on a testbench with the prototype.[1]
  • Cookie of York is still an existing company with slightly different profile and name Cooke Optics Limited.
  • Even though triplets are simple lenses it was difficult to manufacture them initially because the position of the lens elements has to be very precise. Therefore many manufacturers preferred to produce four element lenses instead.[1]
  • Despite that the Triplet design is strongly outdated today, it is still used in the case of many lower-end cameras.

Characteristics

The interestingness of the Meyer Optik Trioplan is the unusually large aperture (f/2.8) which is remarkable because triplets are usually moderate speed lenses for good reasons.
This relatively high maximum aperture comes with a price as the lens shows a wide range of aberrations when used in this setting. On the other hand, this makes the lens somewhat unique with an interesting footprint some might use for artistic purposes.
The out of focus areas  (bokeh) looks very interesting at f2.8, especially when highlights are involved in the background. The light circles (for examples traffic lights) are surrounded by light circles which makes the bokeh really special and as many say psychedelic. In addition, there is a heavy glow around the objects in the in-focus areas, most notably around highlights. This effect can be very dramatic or almost not notable depending on the conditions of the shoot. Last but not least the produced image is rather soft all around the frame in most cases wide open.

Pear
Pear, Canon 450D, Meyer-Optik Trioplan 100mm f/2.8 @ f/2.8

Many buy and uses this lens because of the way it behaves at widest aperture,  but we have to admit that this lens is not a bad performer at all if stopped down just a slight bit. At f/4 and below the lens produces sharp images without glow or distractive psychedelic bokeh. In fact, it has some properties which are very respectable. The lens produces a very low amount of purple fringing around high contrast areas even at modern standards. The lens is definitely sharp enough for most purposes an due to the almost perfectly round iris it produces wonderful creamy bokeh. Furthermore, due to the staples aperture ring, it can be appropriated by videographers as it allows smooth continuous aperture control.

Pear
Pear, Canon 450D, Meyer-Optik Trioplan 100mm f/2.8 @ f/4

How the Trioplan looks like

My Trioplan came as a part of a beautiful Exakta kit along with the original box and invoice.

Meyer Optic Trioplan 100mm f/2.8 in box
Meyer Optic Trioplan 100mm f/2.8 in the box
Meyer Optik Trioplan 100mm f/2.8
Meyer Optik Trioplan 100mm f/2.8
Meyer Optik Trioplan 100mm f/2.8
Meyer Optik Trioplan 100mm f/2.8

The lens can be disassembled very easily almost without any tools. I wanted to unscrew the lens hood only but as a side effect, I have managed to remove an entire lens group. It is not that bad as it sounds because eventually, I could take advantage of the accident. I could clean up the dust from the inside of the lens and fortunately, the assembly went well and the lens performs just the way it did before.  Last but not least you can get a very intimate view of the wonderful circle shaped iris of the Trioplan.

Meyer Optik Trioplan (disassembled) Iris visible
Meyer Optik Trioplan 100mm f/2.8 (disassembled) Iris visible (around f/4)
Meyer Optik Trioplan 100mm f/2.8
Meyer Optik Trioplan 100mm f/2.8 (disassembled) Iris visible (around f/16)
Meyer Optic Trioplan 100mm f/2.8
Meyer Optic Trioplan 100mm f/2.8

Trioplan on Canon 450D

My film shoots with this lens (with Exakta Varex IIa) can be seen here.

Wide open softness and glow can be beneficial when shooting portraits, although I admit isn’t fit all portraits.

Julianna (Gyöngyössolymos, Hungary) Canon 450D, Meyer -Optik Trioplan 100mm f/2.8 @ f/2.8
(Gyöngyössolymos, Hungary) Canon 450D, Meyer -Optik Trioplan 100mm f/2.8 @ f/2.8
(Gyöngyössolymos, Hungary) Canon 450D, Meyer -Optik Trioplan 100mm f/2.8 @ f/2.8

If you stop down the lens a bit, you are going to get a very respectable result.

(Gyöngyös, Hungary) Canon 450D, Meyer -Optik Trioplan 100mm f/2.8 @ f/4
(Gyöngyös, Hungary) Canon 450D, Meyer -Optik Trioplan 100mm f/2.8 @ f/4
Metal palm (Graz, Austria) Canon 450D, Meyer -Optik Trioplan 100mm f/2.8 @ f/8 (No purple fringing)

Recommendation

Pros

  • Reasonably good image quality when stopped down
  • Very low chromatic aberration
  • Circular iris
  • Good bokeh when stopped down
  • The special character at maximum aperture (crazy bokeh)
  • Continuous aperture selection ring without stops/clicks
  • Good built quality
  •  Aged glue can’t be a problem between lens elements as the number of cemented elements is zero
  • Focusing is very smooth (on my instance)
  • Cheap

Cons

  • The outdated optical formula does not deliver cutting-edge performance
  • Very soft and loaded with aberrations at maximum aperture

The Meyer Optik Trioplan is a fun lens to use, it is out of the question. It is also a cheap lens so the investment won’t make your family mad on you.

I would recommend to those who like to experiment with old lenses hoping to achieve some unusual results due to the character of the vintage glass. On the other hand, it is not a toy so you can rely on it when you need good image quality, you just need to avoid f/2.8.

Videographers could also appreciate this lens due to the click-less aperture ring so they can change aperture very smoothly while filming.

But this lens is not for everyone of course if you are looking for top image quality or features like auto-focus than you should definitely look elsewhere.

Links and references
